WFC01 Smart Water Timer – Disassembly and Cleaning Procedure

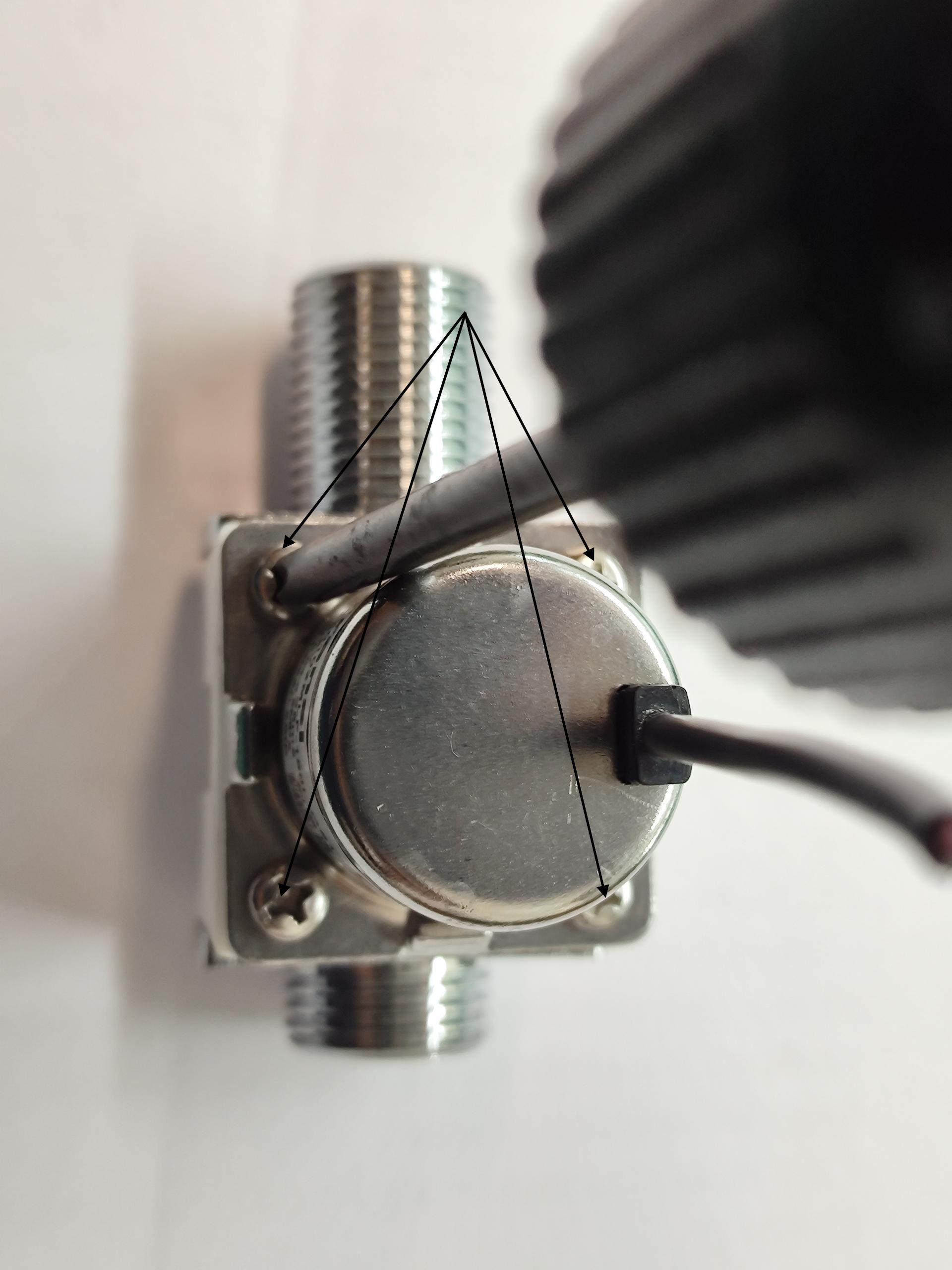

1. Remove the four screws from the device.

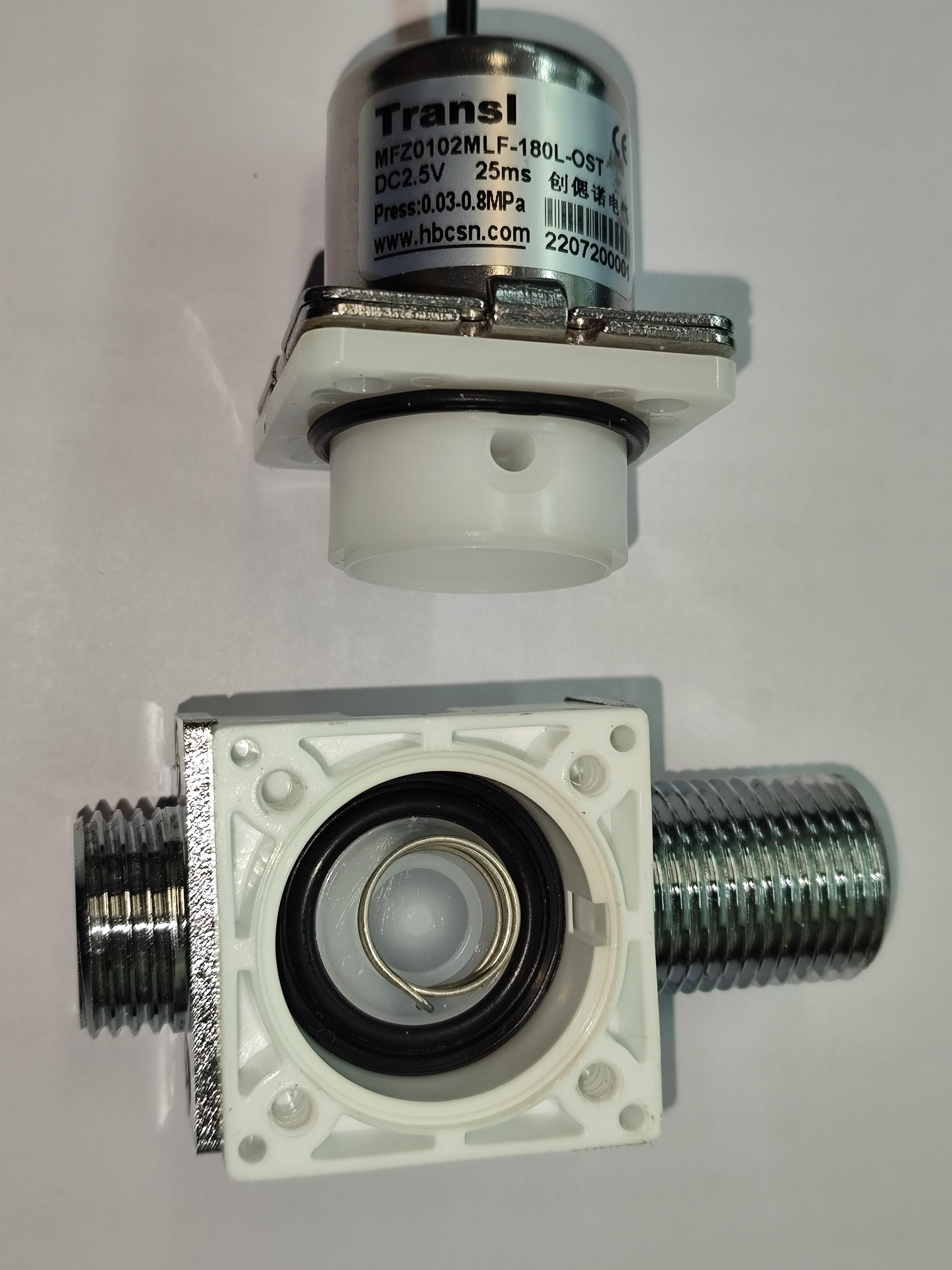

2. After removing the four screws, detach the main body, then remove the white cover that seals the magnet.

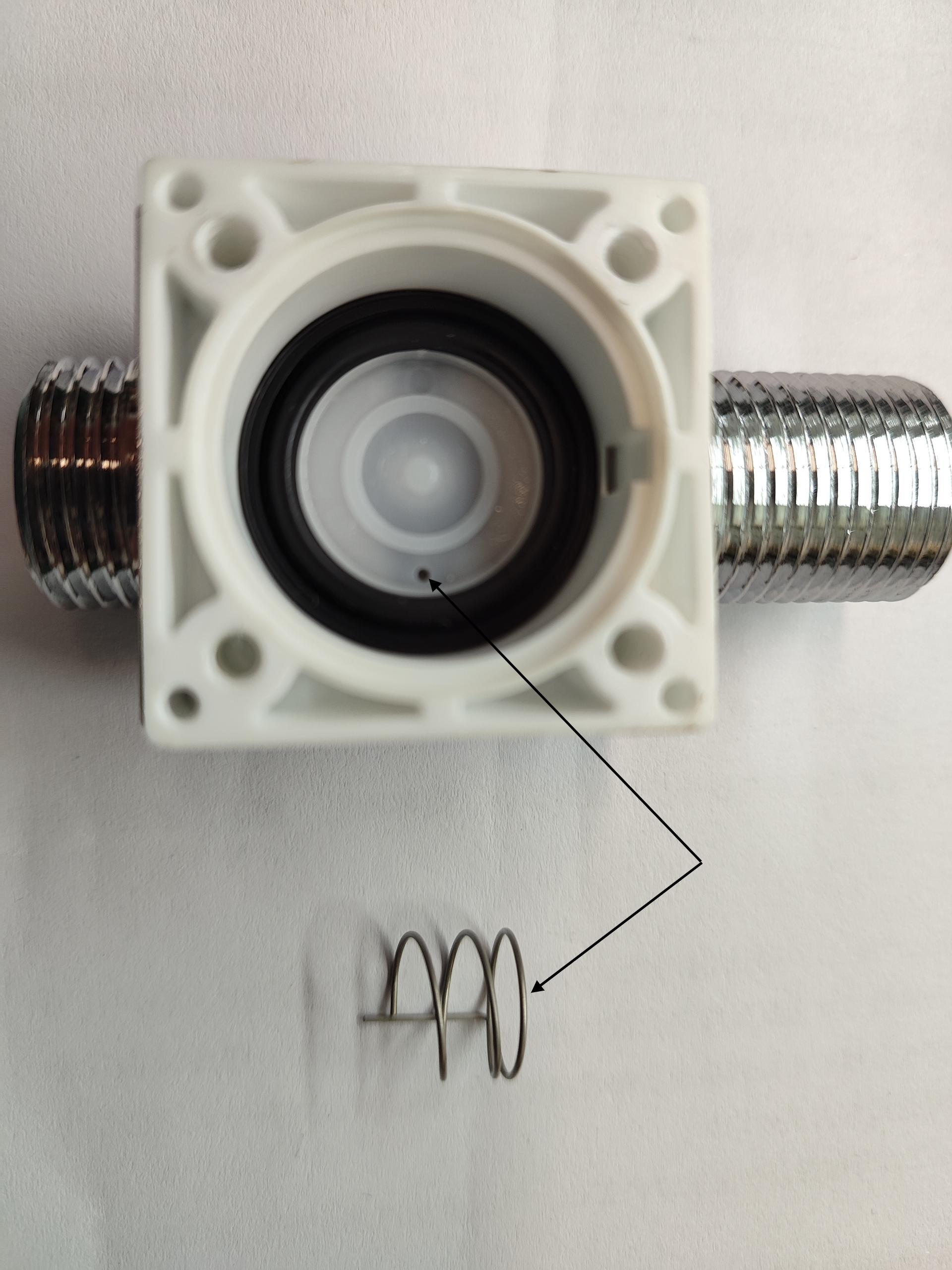

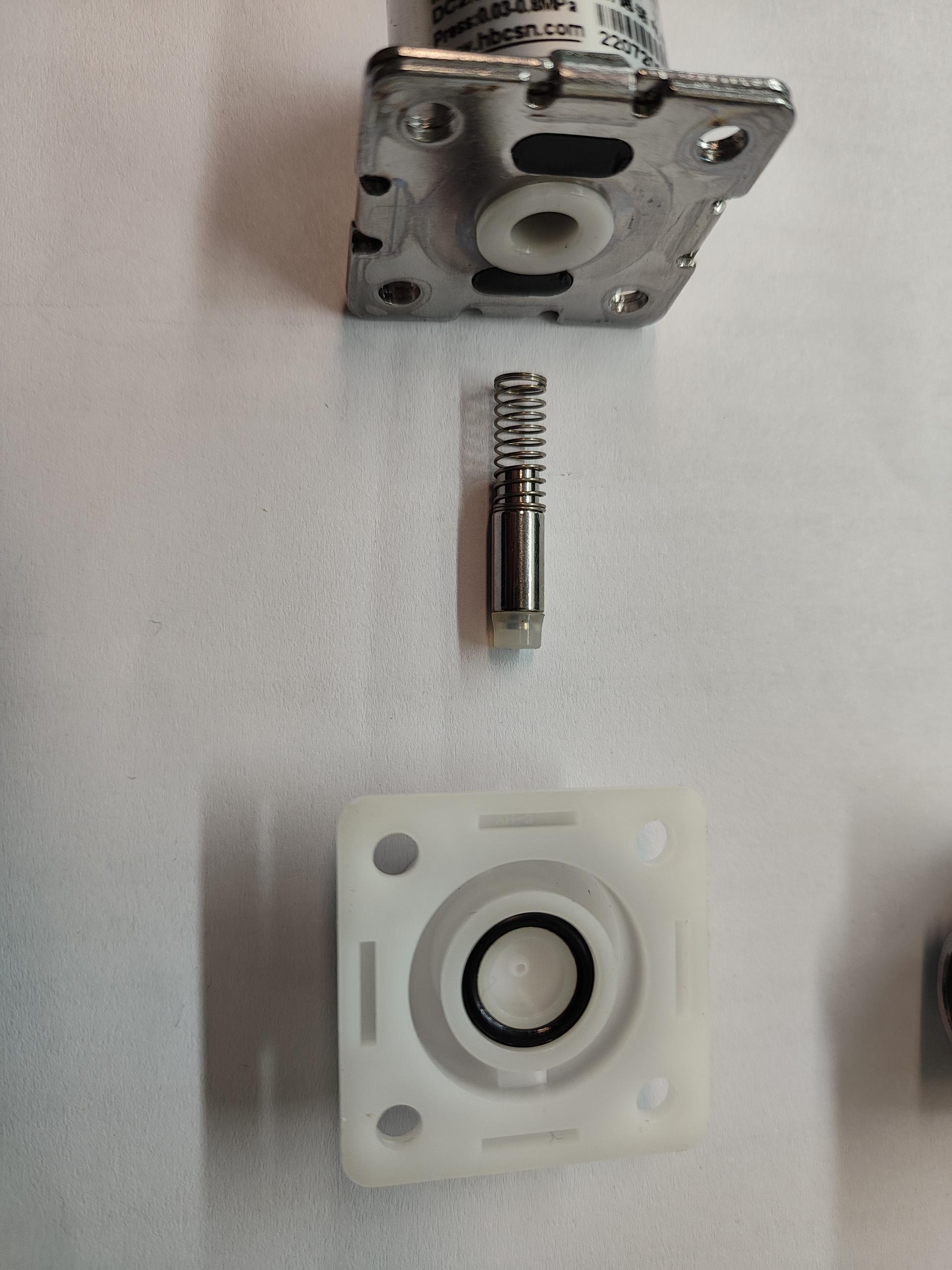

3. Remove the magnet and spring, then take out the spring from the valve assembly.

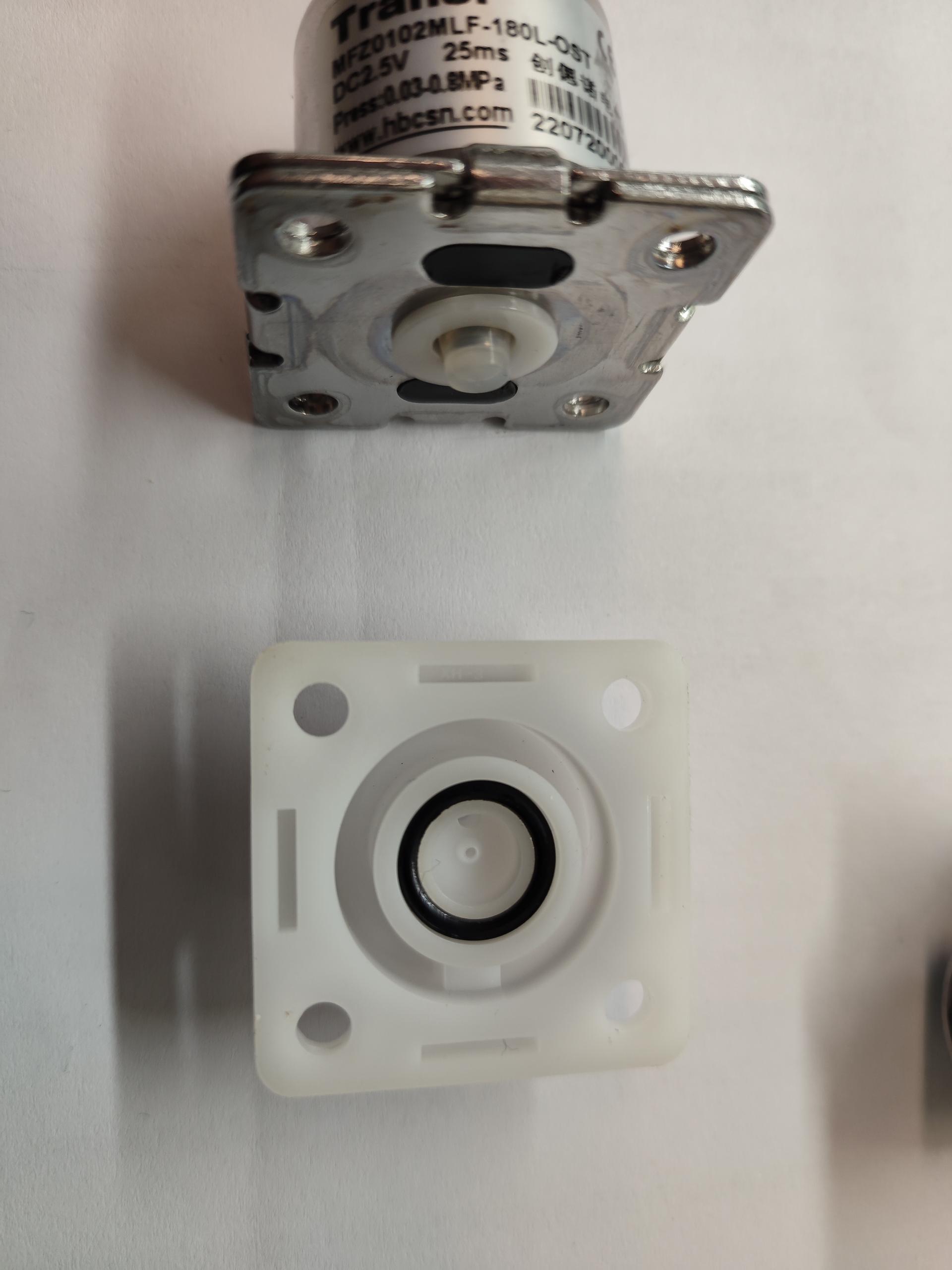

4. Remove the silicone sealing pad and clean both the chamber and the silicone sealing pad.

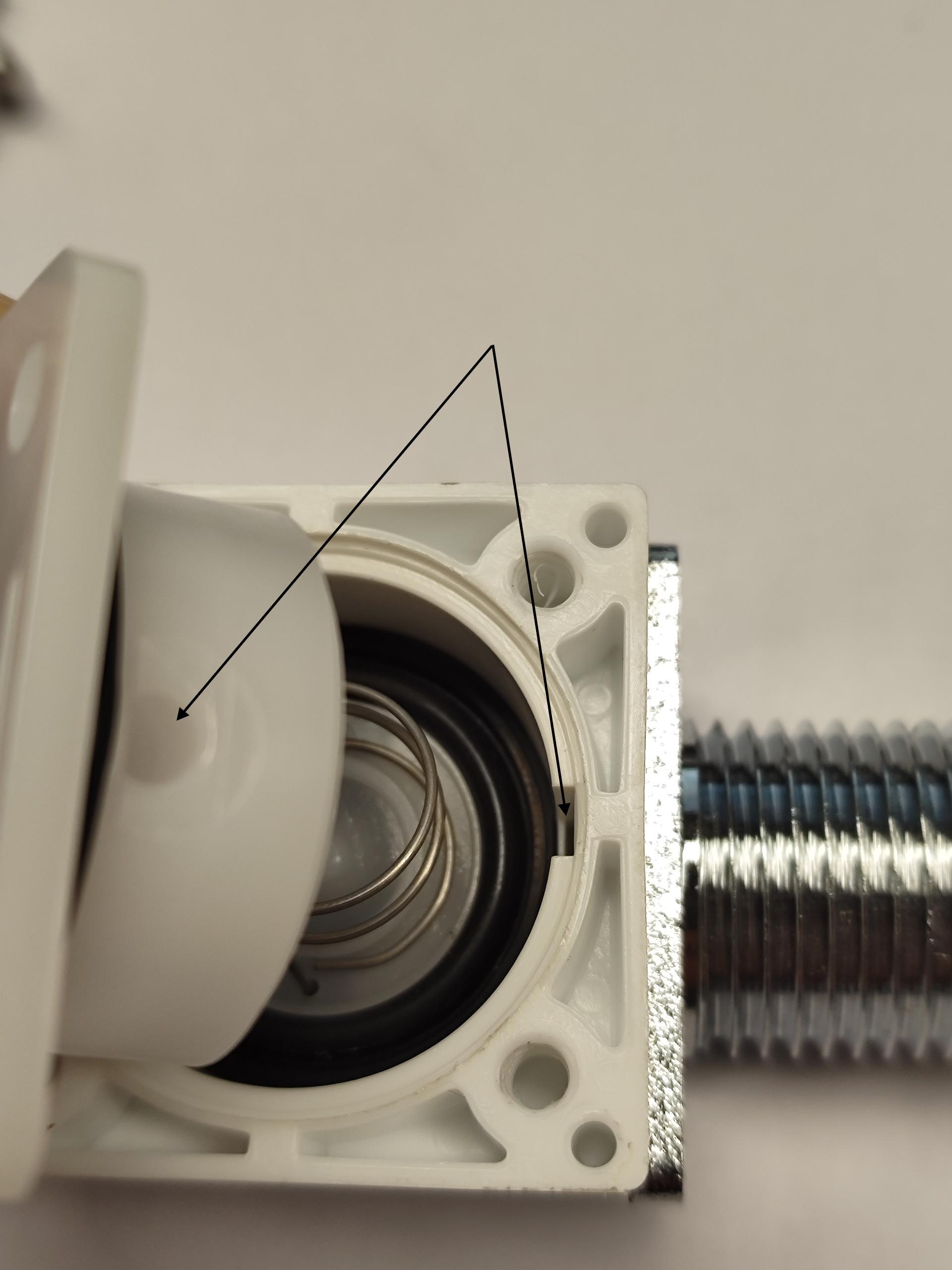

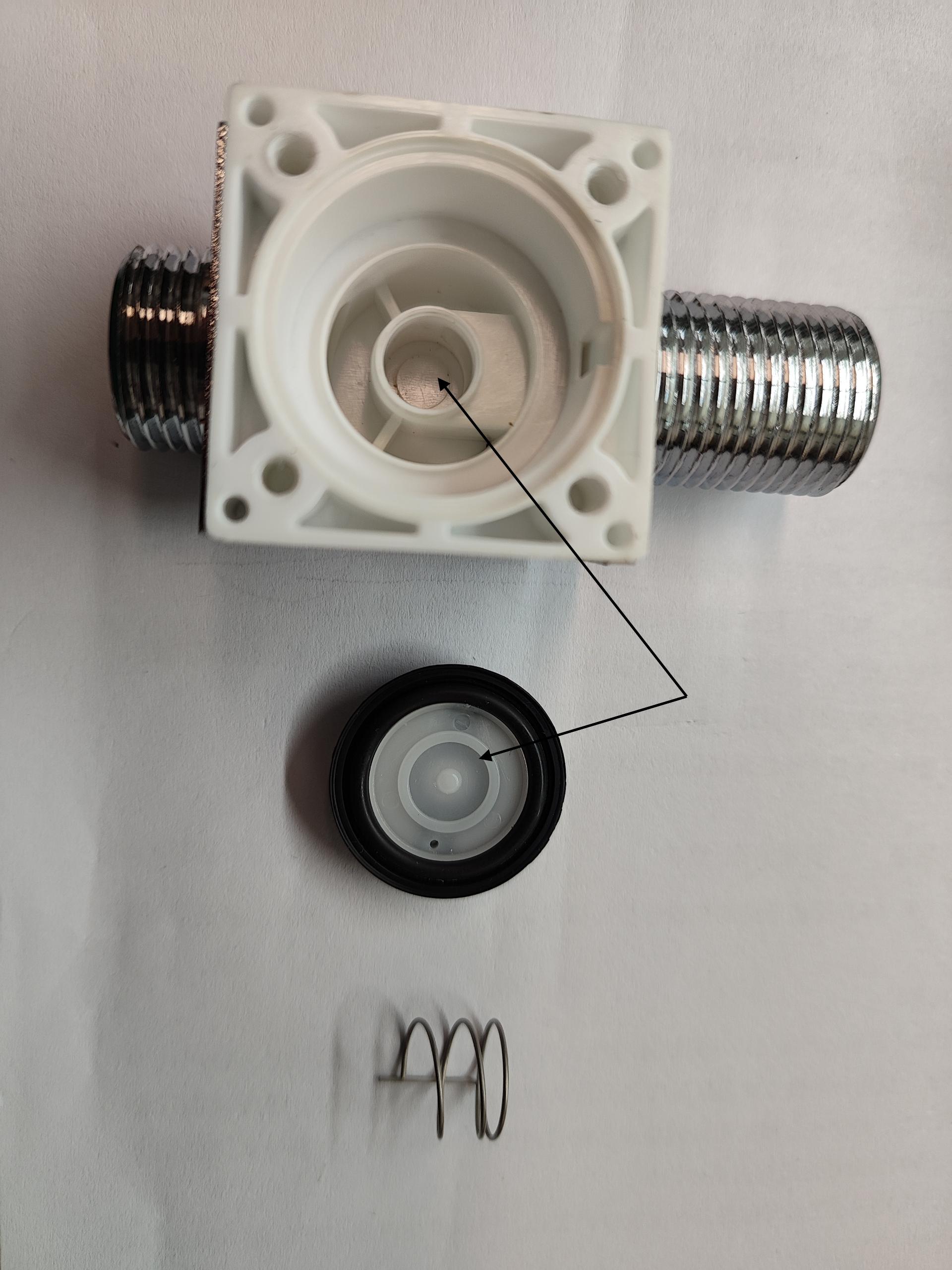

5. After cleaning, reassemble the device in the reverse order of disassembly. Make sure the two holes are properly aligned during assembly.

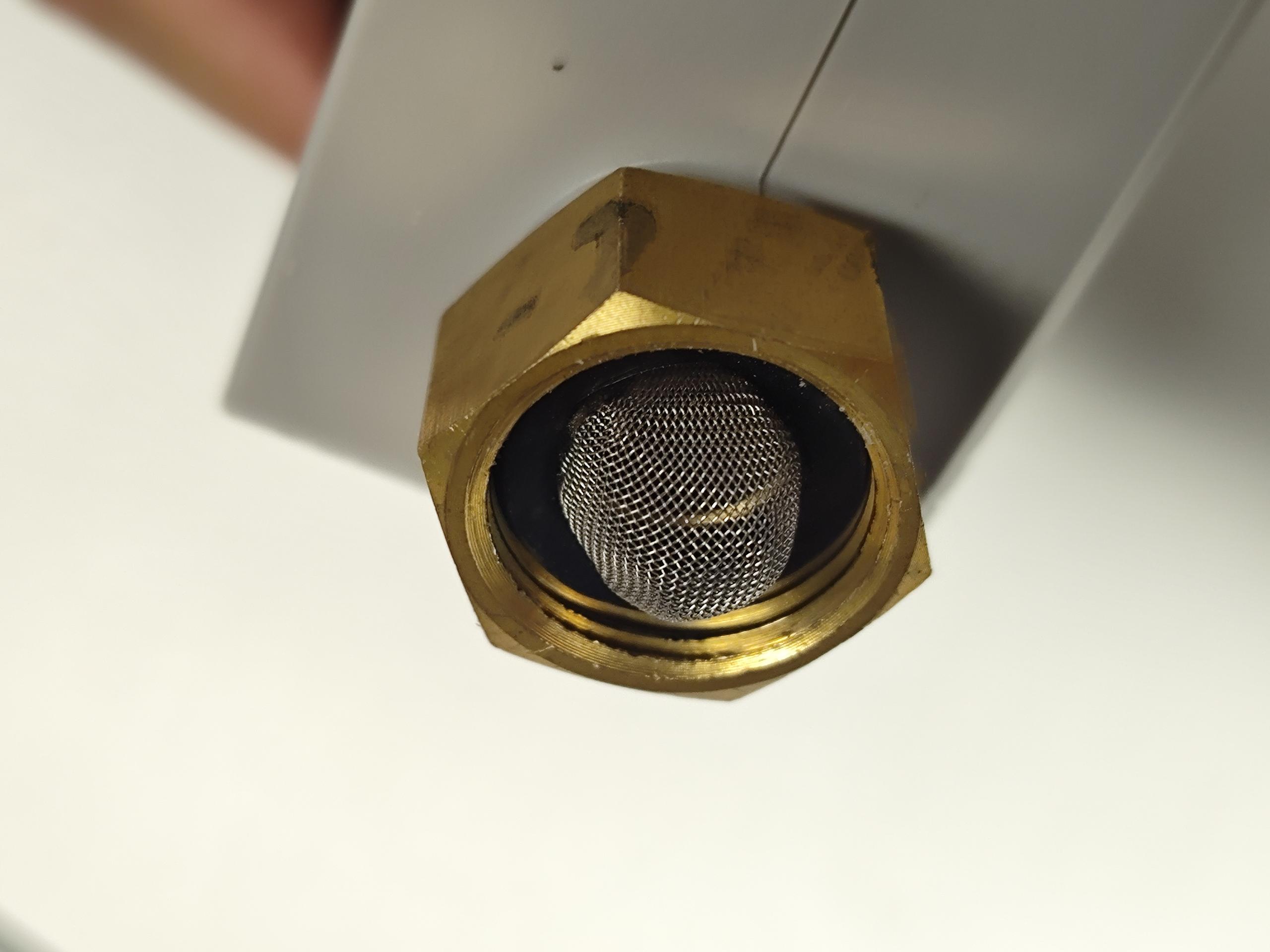

6. Clean the filter screen.

Simply use a brush to clean the filter screen.

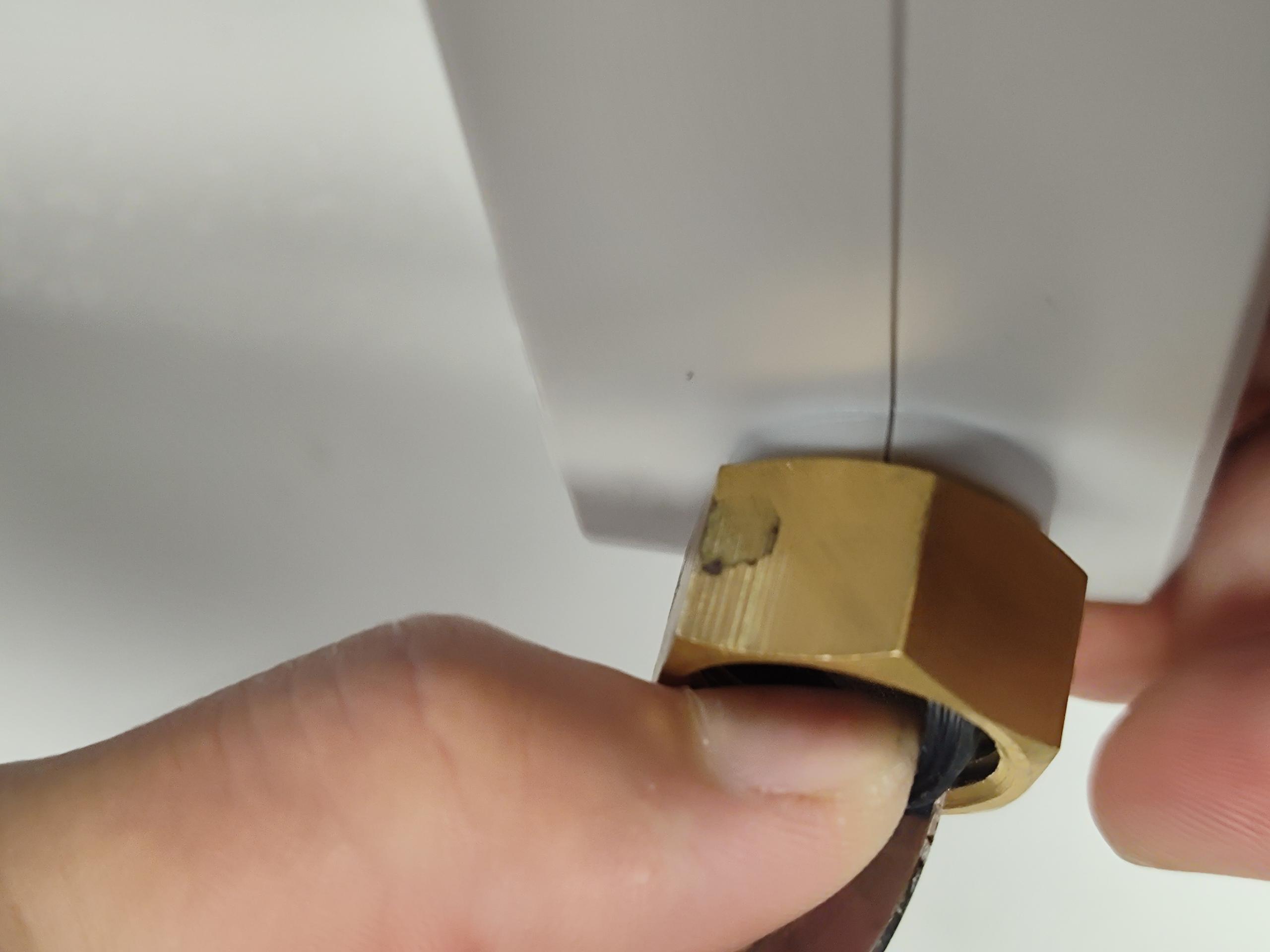

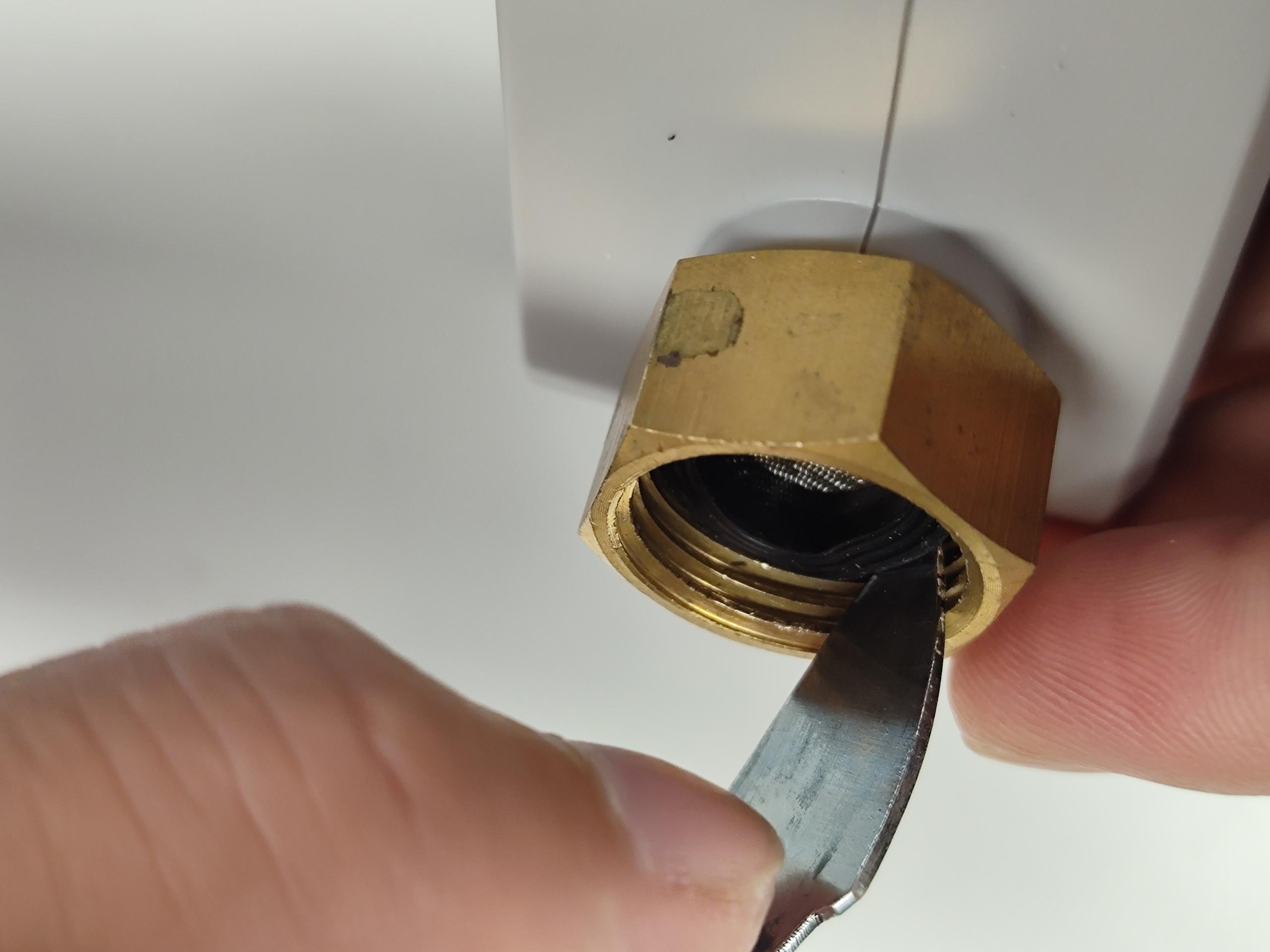

*For the old version of the product, the filter screen is installed in the opposite direction. In this case, insert a thin metal piece between the silicone and the nut, pinch the silicone with your fingers, and remove the filter screen. When reassembling, install it in the opposite direction to make future cleaning easier.
