Steps to Replace the TFT Screen on HP2564Updated 2 days ago

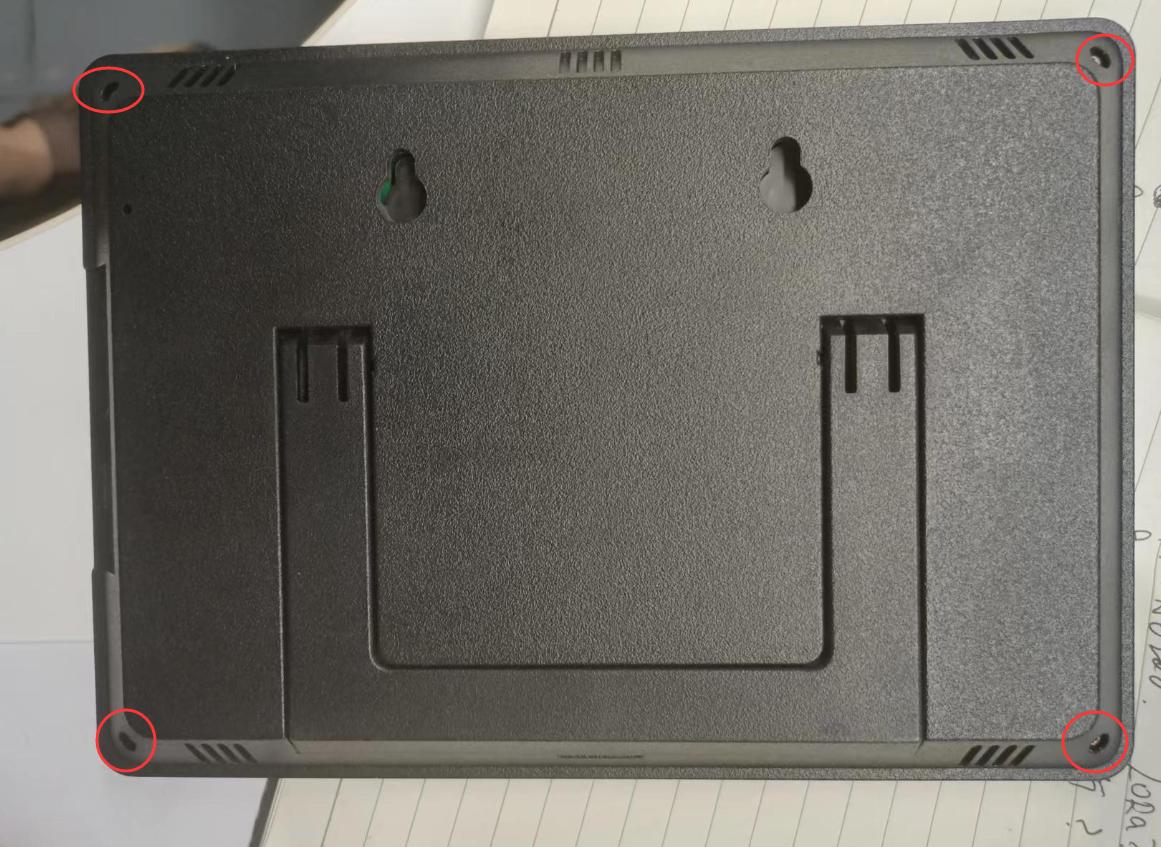

- Remove the four screws marked with red circles using a screwdriver）

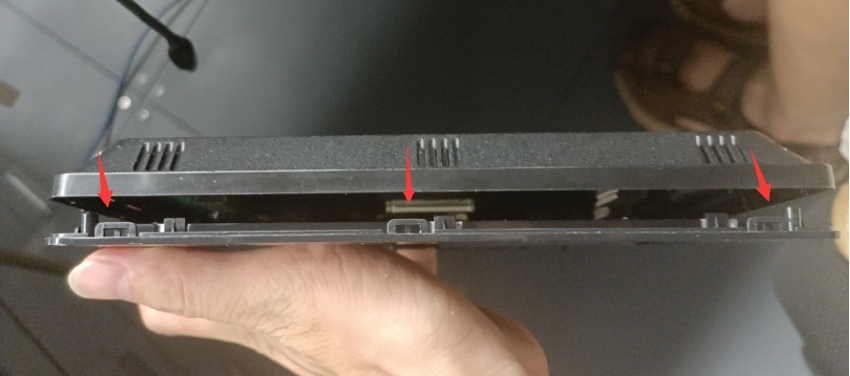

- use a very thin piece of metal blade pushing in and then out along the gap in the housing to remove the housing fastener. Remember to start at the locker side, as marked with the arrow marking below.
- Peal off the tape, unlock the socket to release the FTP cable from the TFT cable.
- remove the TFT panel from the front housing, replace it and then reverse the processing to put it back）
