Gateway static IP settingsUpdated 7 months ago

Step 1: Connect to the AP of GW2000 and enter 192.168.4.1 on browser.

Step 2: Select Local Network ---> IP Address Mode  --> Static. Set the corresponding router IP successfully.

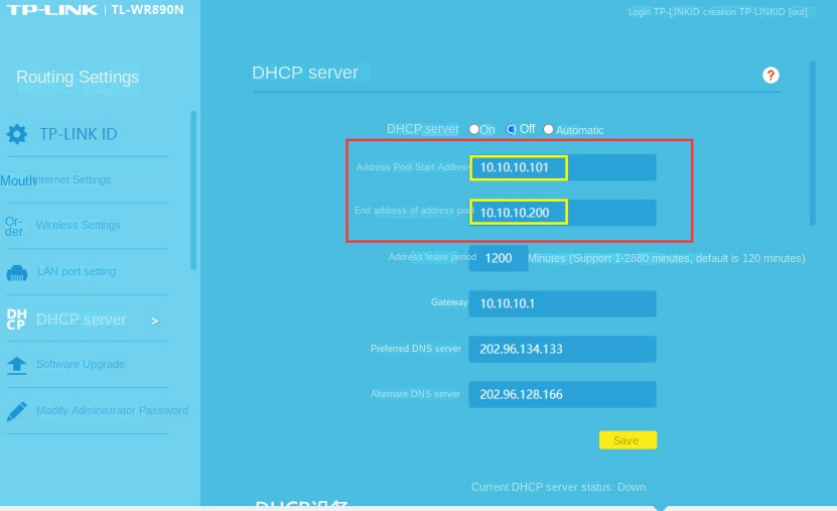

Note: The IP must be within the ip segment of the router to which the network cable is connected, such as the valid IP in the following figure:

10.10.10.101 to 10.10.10.200.

Step 3: If you want to turn off WIFI or verify the actual setting status, you can use 10.10.10.112 to enter

You can turn off WIFI here.
